# INPUT - OUTPUT Workshop R & RStudio
.font160[
.SW-greenD[Deel 5]
]
.font120[
.SW-greenD[*Enkele typische statistische analyses in *] .UA-red[*`R`*]
]
Sven De Maeyer

.font80[
.UA-red[
03/05/2022
]
]

---
class: inverse-green, left

# Overzicht

.center2[

- Correlatie --- ([doorklikken](#part1))
- Lineaire regressie --- ([doorklikken](#part2))
]

---
class: inverse-green, center, middle
name: part1

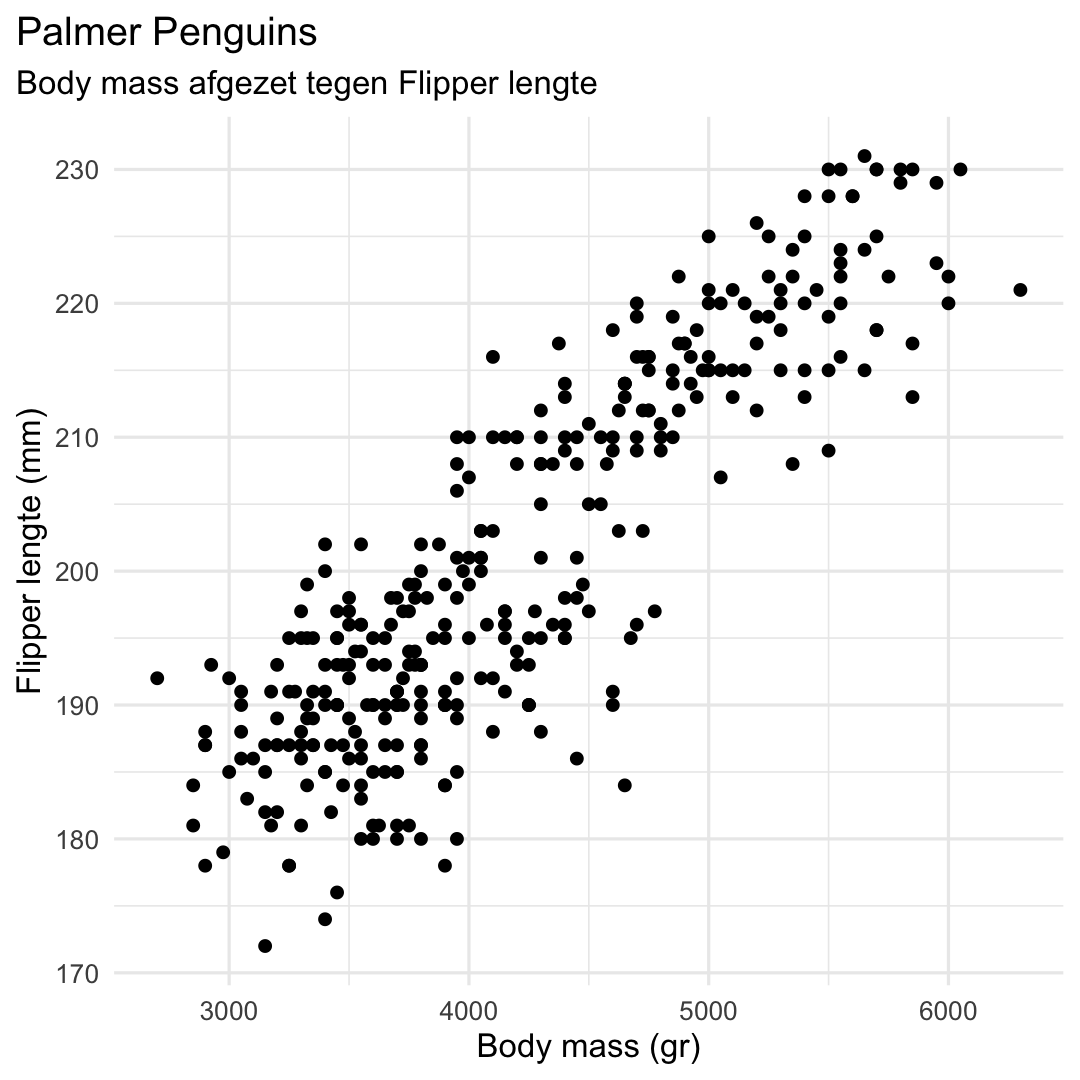

# 1. Correlatie

---

## De .UA-red[`cor( )`] functie

.pull-left[
<img src="Slides_Deel5_files/figure-html/unnamed-chunk-2-1.png" width="360" />
]

.pull-right[
.UA-red[Let op voor NA's!!]
.footnotesize[

```r
library(palmerpenguins)
data("penguins")

cor(penguins$flipper_length_mm,
    penguins$body_mass_g)
```

```
## [1] NA
```

```r
cor(penguins$flipper_length_mm,
    penguins$body_mass_g,
   use = "complete.obs")
```

```
## [1] 0.8712018
```
]
]

---

## Statistische test met .UA-red[`cor.test( )`] functie

```r
cor.test(penguins$flipper_length_mm,
        penguins$body_mass_g)
```

```
##
## 	Pearson's product-moment correlation
##
## data:  penguins$flipper_length_mm and penguins$body_mass_g
## t = 32.722, df = 340, p-value < 2.2e-16
## alternative hypothesis: true correlation is not equal to 0
## 95 percent confidence interval:
##  0.843041 0.894599
## sample estimates:
##       cor
## 0.8712018
```

---
<div class="my-logo-right"> <img src="broom_logo.png" width="100%"/> </div>

## .UA-red[`broom`]  pakket

- Pakket in `tidyverse`

- Output van verschillende statistische methoden op een gelijkaardige wijze omzetten naar .SW-greenD[**tidy**] format!

.UA-red[`tidy()`]: alle belangrijke output als tabel meegeven

```r
library(broom)
C <- cor.test(penguins$flipper_length_mm,
        penguins$body_mass_g)

tidy(C)
```

```
## # A tibble: 1 × 8
##   estimate statistic   p.value parameter conf.low conf.high method   alternative
##      <dbl>     <dbl>     <dbl>     <int>    <dbl>     <dbl> <chr>    <chr>
## 1    0.871      32.7 4.37e-107       340    0.843     0.895 Pearson… two.sided
```

---

## Correlaties tussen meerdere variabelen

```r
penguins %>%
  select(
    bill_depth_mm,
    bill_length_mm,
    flipper_length_mm,
    body_mass_g
  ) %>%
  cor(use = "pairwise.complete.obs")
```

```
##                   bill_depth_mm bill_length_mm flipper_length_mm body_mass_g
## bill_depth_mm         1.0000000     -0.2350529        -0.5838512  -0.4719156
## bill_length_mm       -0.2350529      1.0000000         0.6561813   0.5951098
## flipper_length_mm    -0.5838512      0.6561813         1.0000000   0.8712018
## body_mass_g          -0.4719156      0.5951098         0.8712018   1.0000000
```

---

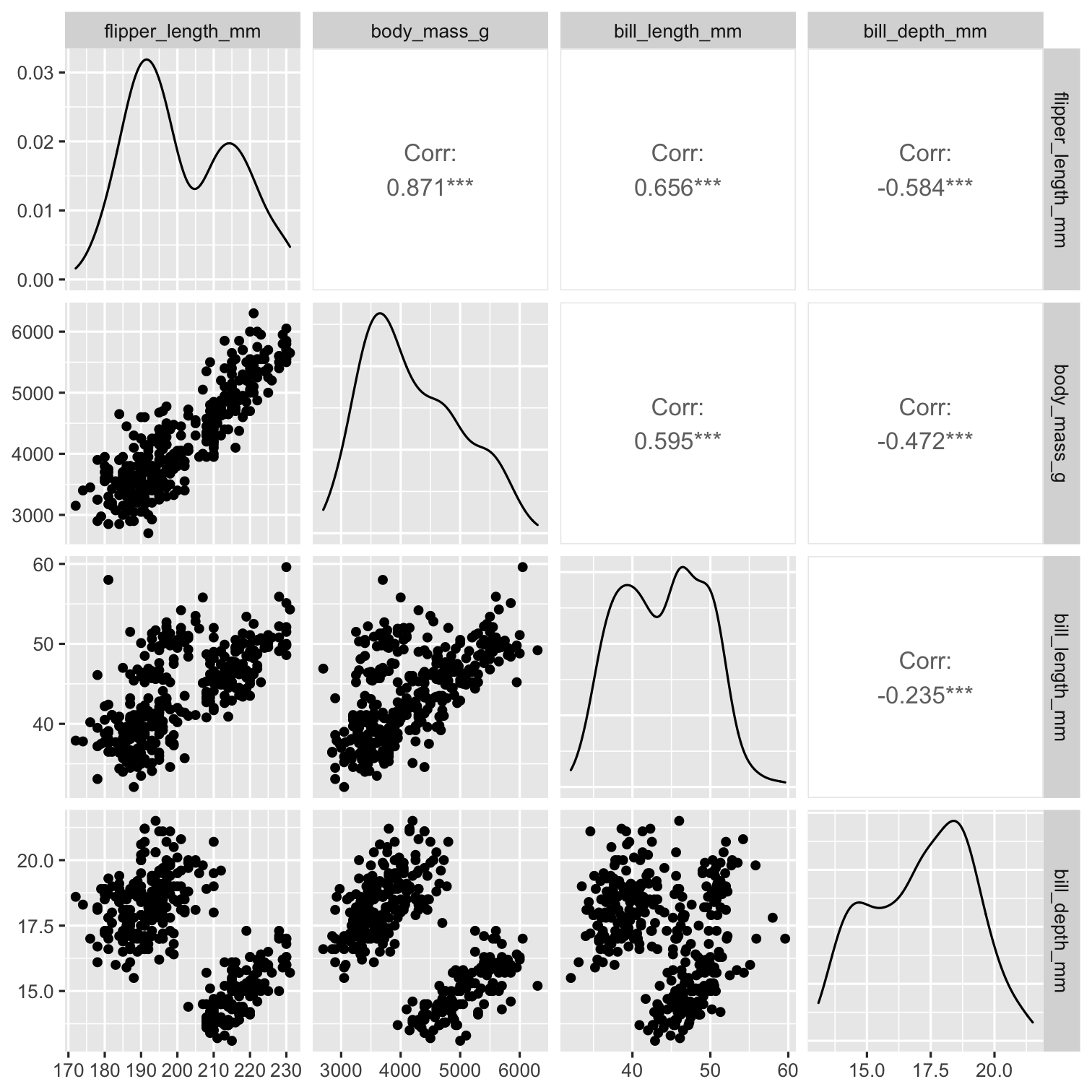

## Correlaties tussen meerdere variabelen visueel

.pull-left[
Pakket: .UA-red[`GGally`]

Functie: .UA-red[`ggpairs()`]

Resultaat: een ggplot object...

.footnotesize[

```r
library(GGally)
penguins %>%
  select(
    species,
    bill_depth_mm,
    bill_length_mm,
    flipper_length_mm,
    body_mass_g
  ) %>%
  ggpairs(
    columns = c(
      "flipper_length_mm", "body_mass_g",
      "bill_length_mm", "bill_depth_mm")
    )
```
]
]

.pull-right[
<img src="Slides_Deel5_files/figure-html/unnamed-chunk-8-1.png" width="504" />
]

---

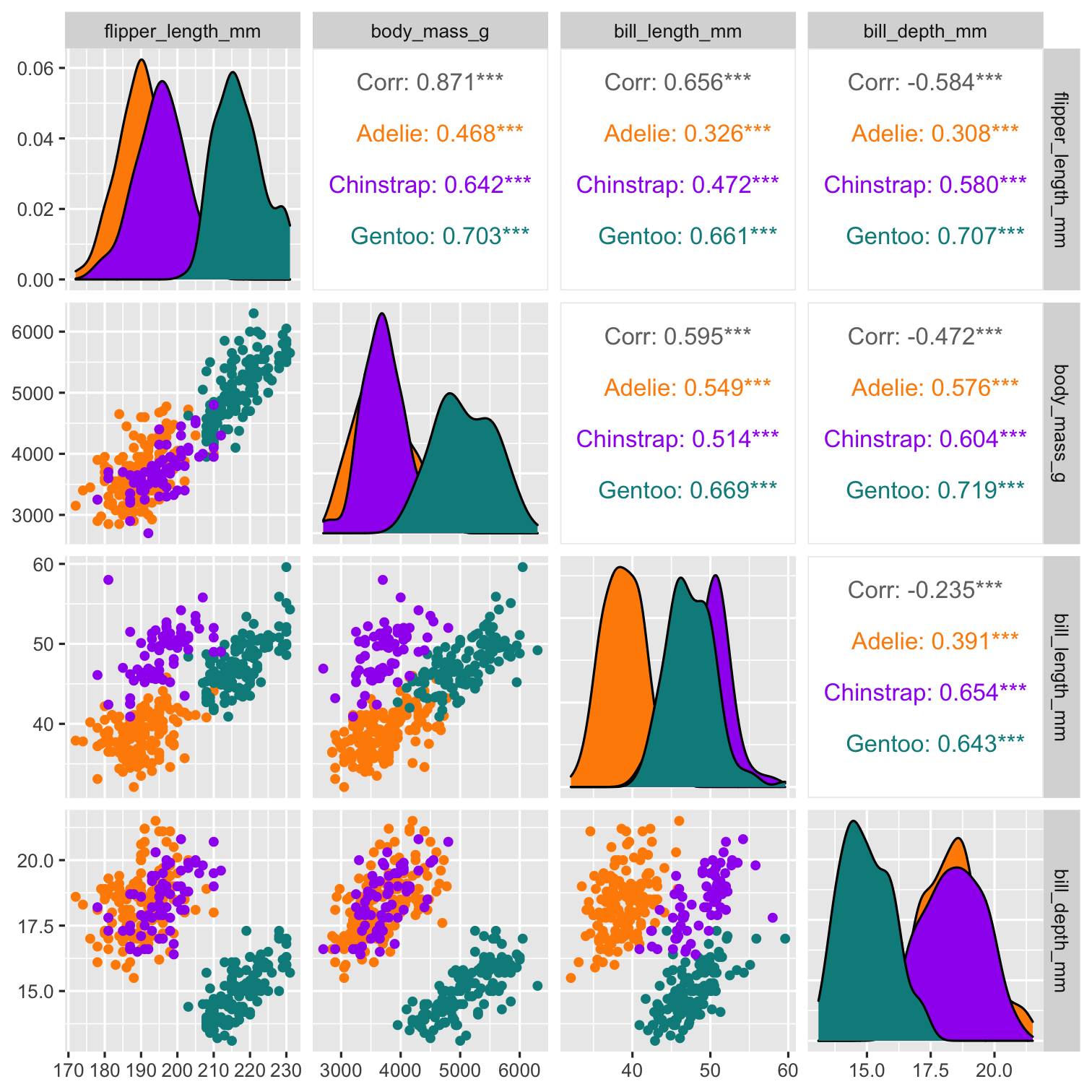

## Correlaties tussen meerdere variabelen visueel MET KLEUR!

.pull-left[

.footnotesize[

```r
penguins %>%
  select(
    species,
    bill_depth_mm,
    bill_length_mm,
    flipper_length_mm,
    body_mass_g
  ) %>%
  ggpairs(
    aes(color = species),
    columns = c(
      "flipper_length_mm", "body_mass_g",
      "bill_length_mm", "bill_depth_mm")) +
  scale_colour_manual(
    values = c("darkorange","purple","cyan4")) +
  scale_fill_manual(
    values = c("darkorange","purple","cyan4"))
```
]
]

.pull-right[
<img src="Slides_Deel5_files/figure-html/unnamed-chunk-10-1.png" width="504" />
]

---
class: inverse-green, center, middle
name: part2

# 2. Lineaire regressie

---

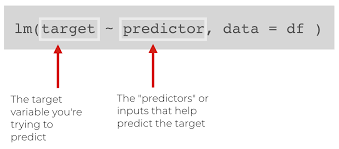

## .UA-red[`lm()`]

```r
Model1 <- lm(flipper_length_mm ~ body_mass_g,
             data = penguins)
```

---

## Model resultaten bekijken met .UA-red[`summary()`]

.footnotesize[

```r
summary(Model1)
```

```
##
## Call:
## lm(formula = flipper_length_mm ~ body_mass_g, data = penguins)
##
## Residuals:
##      Min       1Q   Median       3Q      Max
## -23.7626  -4.9138   0.9891   5.1166  16.6392
##
## Coefficients:
##              Estimate Std. Error t value Pr(>|t|)
## (Intercept) 1.367e+02  1.997e+00   68.47   <2e-16 ***
## body_mass_g 1.528e-02  4.668e-04   32.72   <2e-16 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 6.913 on 340 degrees of freedom
##   (2 observations deleted due to missingness)
## Multiple R-squared:  0.759,	Adjusted R-squared:  0.7583
## F-statistic:  1071 on 1 and 340 DF,  p-value: < 2.2e-16
```
]

---
<div class="my-logo-right"> <img src="broom_logo.png" width="100%"/> </div>

## .UA-red[`broom`]  pakket

Functie: .UA-red[`tidy()`]

Resultaat: tidy dataset met informatie over schattingen

```r
tidy(Model1,
     conf.int = TRUE,
     conf.level = .90)
```

```
## # A tibble: 2 × 7
##   term        estimate std.error statistic   p.value conf.low conf.high
##   <chr>          <dbl>     <dbl>     <dbl>     <dbl>    <dbl>     <dbl>
## 1 (Intercept) 137.      2.00          68.5 5.71e-201 133.      140.
## 2 body_mass_g   0.0153  0.000467      32.7 4.37e-107   0.0145    0.0160
```

---
<div class="my-logo-right"> <img src="broom_logo.png" width="100%"/> </div>

## .UA-red[`broom`]  pakket

Functie: .UA-red[`glance()`]

Resultaat: tidy dataset met model fit gegevens

```r
glance(Model1)
```

```
## # A tibble: 1 × 12
##   r.squared adj.r.squared sigma statistic   p.value    df logLik   AIC   BIC
##       <dbl>         <dbl> <dbl>     <dbl>     <dbl> <dbl>  <dbl> <dbl> <dbl>
## 1     0.759         0.758  6.91     1071. 4.37e-107     1 -1146. 2297. 2309.
## # … with 3 more variables: deviance <dbl>, df.residual <int>, nobs <int>
```

---
<div class="my-logo-right"> <img src="broom_logo.png" width="100%"/> </div>

## .UA-red[`broom`]  pakket

Functie: .UA-red[`augment()`]

Resultaat: aan de originele data extra informatie toevoegen op basis van het model (geschatte waarden; residuelen; ...)

```r
augment(Model1)
```

```
## # A tibble: 342 × 9
##    .rownames flipper_length_mm body_mass_g .fitted .resid    .hat .sigma .cooksd
##    <chr>                 <int>       <int>   <dbl>  <dbl>   <dbl>  <dbl>   <dbl>
##  1 1                       181        3750    194. -13.0  0.00385   6.89 6.88e-3
##  2 2                       186        3800    195.  -8.78 0.00366   6.91 2.97e-3
##  3 3                       195        3250    186.   8.62 0.00705   6.91 5.57e-3
##  4 5                       193        3450    189.   3.57 0.00550   6.92 7.41e-4
##  5 6                       190        3650    192.  -2.49 0.00431   6.92 2.81e-4
##  6 7                       181        3625    192. -11.1  0.00444   6.90 5.78e-3
##  7 8                       195        4675    208. -13.1  0.00395   6.89 7.19e-3
##  8 9                       193        3475    190.   3.19 0.00533   6.92 5.73e-4
##  9 10                      190        4250    202. -11.7  0.00293   6.89 4.19e-3
## 10 11                      186        3300    187.  -1.14 0.00663   6.92 9.14e-5
## # … with 332 more rows, and 1 more variable: .std.resid <dbl>
```

---
<div class="my-logo-right"> <img src="broom_logo.png" width="100%"/> </div>

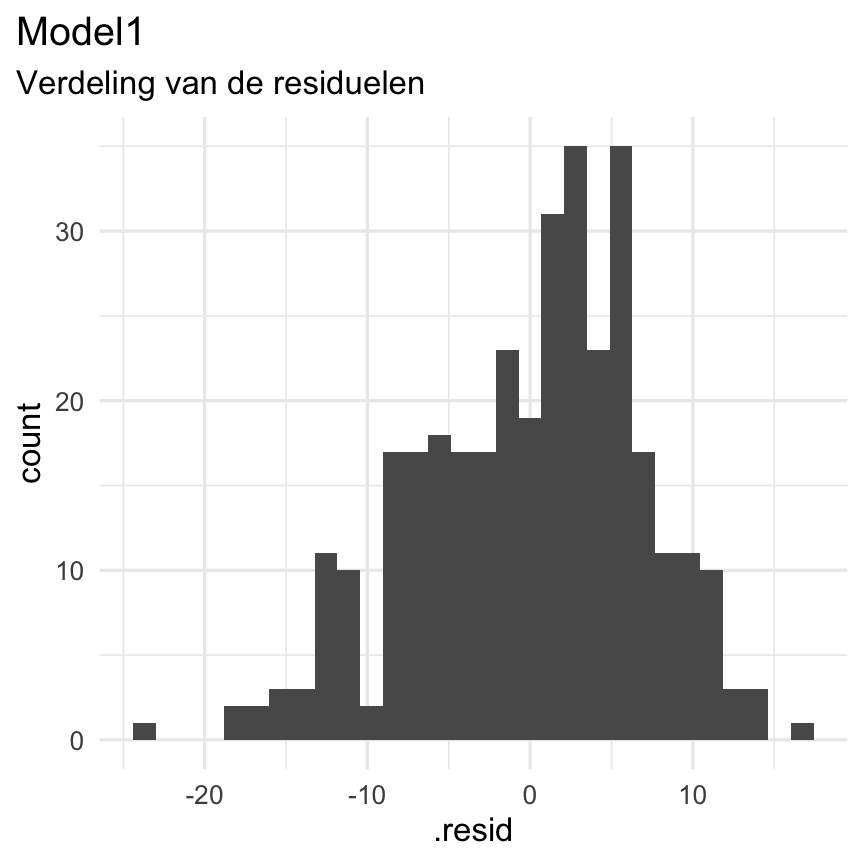

## .UA-red[`broom`]  pakket

Functie: .UA-red[`augment()`] + .UA-red[`geom_histogram()`]

Resultaat: Residuelen normaal verdeeld?

.pull-left[

```r
augment(Model1) %>%
  select(.resid) %>%
  ggplot(
    aes(
      x = .resid
    )
  ) +
  geom_histogram() +
  theme_minimal() +
  labs(
    title = "Model1",
    subtitle = "Verdeling van de residuelen"
  ) +
  theme(plot.title.position = "plot")
```
]

.pull-right[
<img src="Slides_Deel5_files/figure-html/unnamed-chunk-18-1.png" width="288" style="display: block; margin: auto;" />
]

---
<div class="my-logo-right"> <img src="broom_logo.png" width="100%"/> </div>

## .UA-red[`broom`]  pakket

Functie: .UA-red[`augment()`] + .UA-red[`geom_histogram()`]

Resultaat: Residuelen normaal verdeeld?

.pull-left[

```r
augment(Model1) %>%
  select(.fitted, .std.resid) %>%
  ggplot(
    aes(
      x = .fitted,
      y = .std.resid
    )
  ) +
  geom_point() +
  theme_minimal() +
  labs(
    title = "Model1",
    subtitle = "Fitted values vs residuals"
  ) + geom_hline(yintercept = 0) +
  theme(plot.title.position = "plot")
```
]

.pull-right[
<img src="Slides_Deel5_files/figure-html/unnamed-chunk-20-1.png" width="288" style="display: block; margin: auto;" />
]

---
<div class="my-logo-right"> <img src="broom_logo.png" width="100%"/> </div>

## .UA-red[`broom`]  pakket

Functie: .UA-red[`augment()`] + .UA-red[`geom_histogram()`]

Resultaat: Residuelen normaal verdeeld?

.pull-left[

.pull-right[
<img src="Slides_Deel5_files/figure-html/unnamed-chunk-22-1.png" width="288" style="display: block; margin: auto;" />
]

---

## Lineair model met meerdere voorspellers

.footnotesize[

```r
Model2 <- lm(
  flipper_length_mm ~ body_mass_g + sex + species,
  data = penguins
)

tidy(Model2)
```

```
## # A tibble: 5 × 5
##   term              estimate std.error statistic   p.value
##   <chr>                <dbl>     <dbl>     <dbl>     <dbl>
## 1 (Intercept)      165.       3.18         51.7  1.01e-159
## 2 body_mass_g        0.00655  0.000931      7.04 1.15e- 11
## 3 sexmale            2.48     0.854         2.90 3.97e-  3
## 4 speciesChinstrap   5.54     0.785         7.06 9.92e- 12
## 5 speciesGentoo     18.0      1.44         12.5  1.46e- 29
```
]

---

## Modellen vergelijken

Model fit informatie van meerdere modellen op een rijtje zetten:

```r
M1_info <- glance(Model1) %>% select(r.squared, AIC, BIC)
M2_info <- glance(Model2) %>% select(r.squared, AIC, BIC)

M1_info %>% rbind(M2_info)
```

```
## # A tibble: 2 × 3
##   r.squared   AIC   BIC
##       <dbl> <dbl> <dbl>
## 1     0.759 2297. 2309.
## 2     0.856 2068. 2091.
```

---

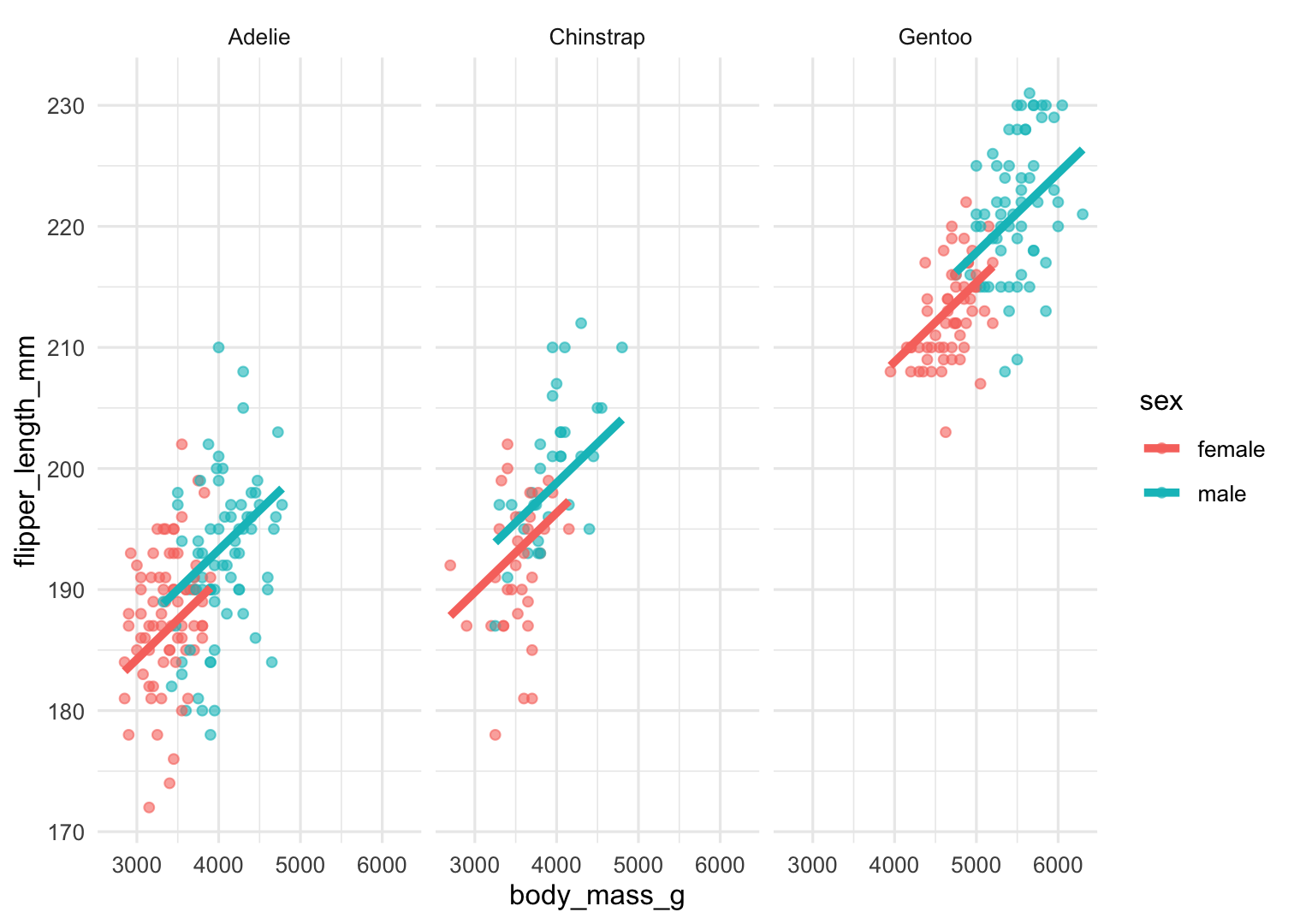

## Model visualiseren

.pull-left[
.footnotesize[

```r
augment(Model2) %>%
  ggplot() +
  geom_point(
    aes(x = body_mass_g,
        y = flipper_length_mm,
        color = sex),
    alpha = .6
  ) +
  geom_line(
    aes(
      x = body_mass_g,
      y = .fitted,
      color = sex,
    ),
    size = 1.5
  ) +
  facet_wrap(.~species) +
  theme_minimal()
```
]
]

.pull-right[
<img src="Slides_Deel5_files/figure-html/unnamed-chunk-26-1.png" width="504" style="display: block; margin: auto;" />
]
